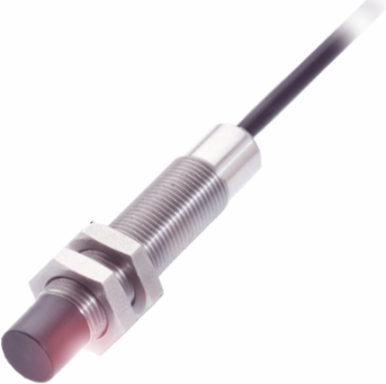

Balluff BCS M12B4G1-POC80H-EP02 Capacitive Level Sensor, 1-8 mm Range, Stainless Steel, IP67
- MPN: BCS M12B4G1-POC80H-EP02
- PPN: BAL-BCS00PE
CAD
$287.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Range
- 1-8 mm
- Switching frequency
- 100 Hz
- Repeat accuracy max
- 2 %
- Temperature drift max
- 20 % [-5–55 °C]
- Rated operating current
- 100 mA
- Size / Thread (A)
- M12x1
- Material
- Stainless steel (1.4305), PBT, PUR
- Installation
- non-flush
- IP rating
- IP67
- Series
- M12
Operating voltage10-30 VDC
Switching outputPNP Normally closed (NC)
Hysteresis max15 %
No-load current max15 mA
Tightening torque40 Nm
DimensionØ 12 x 61 mm
ConnectionCable, 2.00 m, PUR
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
SensitivitySwitching distance adjustable
