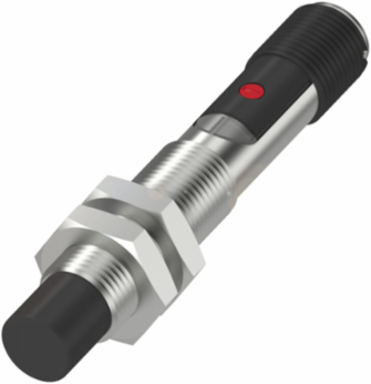

Balluff BCS M12B4E2-NSC80H-S04K Capacitive Level Sensor 12 x 75mm, IP67, 10-30 VDC, NPN NO
- MPN: BCS M12B4E2-NSC80H-S04K
- PPN: BAL-BCS00P6
CAD
$281.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Output | NPN Normally open (NO) |
| Dimension | 12 x 75 mm |
| Housing Material | Stainless steel (1.4305) |
| IP Rating | IP67 |
| Sensitivity | Switching distance adjustable |
| Installation | non-flush |
| Approval/Conformity | CE, cULus, WEEE |
| Range | 1-8 mm |
|---|---|
| Switching Frequency | 100 Hz |
| Thread Size | M12x1 |
| Material Sensing Surface | PBT |
| Ambient Temperature | -25 to 85 C |
| Connection | Connector |
| Series | M12 |
