Balluff

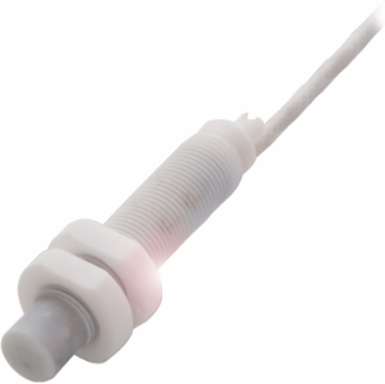

Balluff BCS M12TTI1-POM60G-ET02-E Capacitive Level Sensor Ø 12 x 63 mm, 12-35 VDC, IP65

Capacitive Level Sensor Ø 12 x 63 mm, 12-35 VDC, IP65
  • MPN: BCS M12TTI1-POM60G-ET02-E
  • PPN: BAL-BCS009K

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$424.52/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 12 x 63 mm
Thread (A)
M12x1
Connection
Cable, 2.00 m, PTFE
Switching frequency
25 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PTFE
Operating voltage Ub
12-35 VDC
IP rating
IP65
SeriesM12
Installationnon-flush
Switching outputPNP Normally closed (NC)
Range1-6 mm
Housing materialPTFE
Ambient temperature-30-60 °C
Approval/ConformityCE, cULus, WEEE
