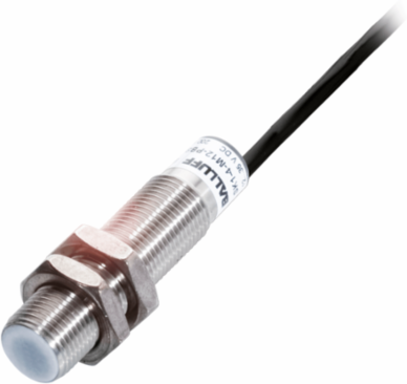

Balluff BCS M12T4G1-PSM40C-EP02 Capacitive Sensor 12-35 VDC, Ø 12 x 50 mm, IP65, Range 1-4 mm
- MPN: BCS M12T4G1-PSM40C-EP02
- PPN: BAL-BCS002Z
CAD
$396.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Voltage
- 12-35 VDC
- Switching Output
- PNP Normally open (NO)
- Sensitivity
- Switching distance adjustable
- Dimension
- d8 12 x 50 mm
- Installation
- Flush mounting
- Material Sensing Surface
- PTFE
- Approval/Conformity
- CE, cULus, WEEE
- Series
- M12
Range1-4 mm
Ambient Temperature-30 to 70 b0C
Switching Frequency100 Hz
ConnectionCable, 2 m, PUR
Thread SizeM12x1
Material HousingStainless steel (1.4301)
IP RatingIP65
