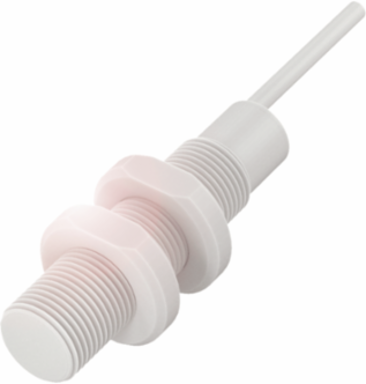

Balluff BCS M12TTG1-PSM40C-ET02 Capacitive Sensor 4 mm Detection Range, 12 x 50 mm, IP65
- MPN: BCS M12TTG1-PSM40C-ET02
- PPN: BAL-BCS00AU
CAD
$413.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Detection Range | 4 mm |
|---|---|
| Operating Voltage | 12-35 VDC |
| Rated Operating Current | 200 mA |
| No-Load Current | 15 mA |
| Dimensions | 12 x 50 mm |
| Tightening Torque | 0.5 Nm |
| Number of Conductors | 3 |
| Material Housing | PTFE |
| Material Jacket | PUR |
| IP Rating | IP65 |
| Polarity Reversal Protection | Yes |
| Compliance | CE, cULus, WEEE |
| Installation | for flush mounting |
| Switching Frequency | 100 Hz |
|---|---|
| Rated Insulation Voltage | 75 V DC |
| Voltage Drop Max | 1.3 V |
| Ambient Temperature Range | -30 to 60 C |
| Thread Size | M12x1 |
| Connection | Cable, 2.00 m, PUR |
| Conductor Cross-Section | 0.14 mm2 |
| Material Sensing Surface | PTFE |
| Material Cover | POM |
| Switching Output | PNP Normally open (NO) |
| Short-Circuit Protection | Yes |
| Series | M12 |
