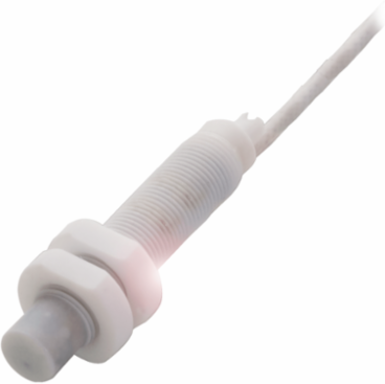

Balluff BCS M12TTI1-PSM60G-ET02-E Capacitive Level Sensor, 12 x 63 mm, Non-Flush, IP65
- MPN: BCS M12TTI1-PSM60G-ET02-E
- PPN: BAL-BCS009J
CAD
$437.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 12-35 VDC |
|---|---|
| Range | 1-6 mm |
| Thread Size | M12x1 |
| Connection | Cable, 2 m, PTFE |
| Housing Material | PTFE |
| Ambient Temperature Range | -30 to 60 C |
| Approval/Conformity | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
| Switching Frequency | 25 Hz |
|---|---|
| Dimension | 12 x 63 mm |
| Installation | non-flush |
| Material Sensing Surface | PTFE |
| IP Rating | IP65 |
| Switching Output | PNP Normally open (NO) |
| Series | M12 |
