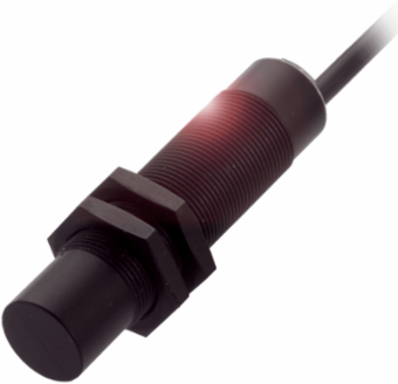

Balluff BCS M18BBH1-NOC15H-EP02 Capacitive Level Sensor Ø 18 x 75.5 mm, IP67, 10-30 VDC

Capacitive Level Sensor Ø 18 x 75.5 mm, IP67, 10-30 VDC
  • MPN: BCS M18BBH1-NOC15H-EP02
  • PPN: BAL-BCS00M0

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$189.07/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 18 x 75.5 mm
Thread (A)
M18x1
Connection
Cable, 2.00 m, PUR
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP67
SeriesM18
Installationnon-flush
Switching outputNPN Normally closed (NC)
Range2-15 mm
Housing materialPBT
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
