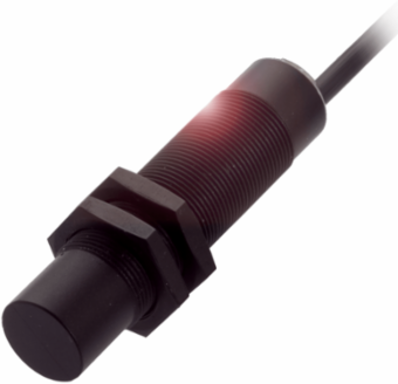

Balluff BCS M18BBH1-PSC15H-EP02 Capacitive Level Sensor, Ø 18 x 75.5 mm, 10-30 VDC, IP67
- MPN: BCS M18BBH1-PSC15H-EP02
- PPN: BAL-BCS00LL
CAD
$166.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Rated Operating Current
- 100 mA
- Ambient Temperature Range
- -25 to 85 0C
- Switching Output
- PNP Normally open (NO)
- Thread Size
- M18x1
- Connection
- Cable, 2.00 m, PUR
- Material Sensing Surface
- PBT
- Material Cover
- PA
- Compliance
- CE, cULus, WEEE
- Sensitivity
- Switching distance adjustable
Range2-15 mm
Switching Frequency100 Hz
Storage Temperature Range-40 to 85 0C
Dimension
8 18 x 75.5 mm
Tightening Torque2 Nm
Material HousingPBT
Material JacketPUR
IP RatingIP67
Installationnon-flush
