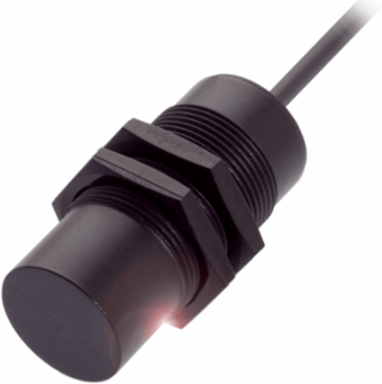

Balluff BCS M30BBE1-POC25H-EP02 Capacitive Level Sensor 30 x 65.5 mm, IP67, 10-30 VDC
- MPN: BCS M30BBE1-POC25H-EP02
- PPN: BAL-BCS00NU
CAD
$167.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 V DC |
|---|---|
| Rated Operating Current | 100 mA |
| Switching Frequency | 100 Hz |
| Rated Operating Distance | 25 mm |
| Repeat Accuracy Max. | 2 % of Sr |
| Dimension | 30 x 65.5 mm |
| Installation | non-flush |
| Material Housing | PBT |
| Material Jacket | PUR |
| Protection Class | II |
| IP Rating | IP67 |
| Ambient Temperature Range | -25 to 85 C |
| Series | M30 |
| Short-Circuit Protection | Yes |
| Function Indicator | Yes |
| Rated Operating Voltage | 24 V DC |
|---|---|
| Voltage Drop Static Max. | 1.5 V |
| Measuring Range | 1-25 mm |
| Hysteresis Max. | 15 % of Sr |
| Temperature Drift Max. | 20 % of Sr [-5 to 55 C] |
| Thread Size | M30x1.5 |
| Connection | Cable, 2 m, PUR |
| Material Sensing Surface | PBT |
| Material Cover | PBT |
| Rated Insulation Voltage | 75 V DC |
| Approval/Conformity | CE, cULus, WEEE |
| Storage Temperature Range | -25 to 85 C |
| Polarity Reversal Protected | Yes |
| Sensitivity | Switching distance adjustable |
| Power Indicator | Yes |
