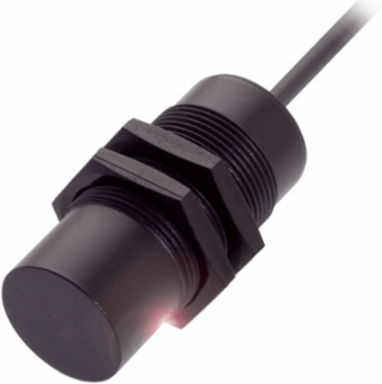

Balluff BCS M30BBE1-NSC25H-EP02 Capacitive Level Sensor, M30x1.5 Thread, IP67, 1-25 mm Range
- MPN: BCS M30BBE1-NSC25H-EP02
- PPN: BAL-BCS00NW
CAD
$167.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Measuring Range
- 1-25 mm
- Switching Output
- NPN Normally open (NO)
- Dimension
- Ø 30 x 65.5 mm
- Connection
- Cable, 2.00 m, PUR
- Housing Material
- PBT
- Protection Class
- II
- Ambient Temperature Range
- -25 to 85 °C
- Series
- M30
- Sensitivity
- Switching distance adjustable
- Cable Diameter
- 4.60 mm
- Number of Conductors
- 3
- MTTF (40 °C)
- 226 a
- Short-Circuit Protection
- Yes
- Voltage Drop Static Maximum
- 1.5 V
- Hysteresis Maximum
- 15% of Sr
- Temperature Drift Maximum
- 20% of Sr [-5 to 55 °C]
Rated Operating Distance25 mm
Switching Frequency100 Hz
SizeM30x1.5
Thread SizeM30x1.5
Material Sensing SurfacePBT
Material JacketPUR
IP RatingIP67
Approval/ConformityCE, cULus, WEEE
Installationnon-flush
Tightening Torque6 Nm
Conductor Cross-Section0.34 mm²
Rated Insulation Voltage75 V DC
Polarity Reversal ProtectedYes
No-load Current Maximum13 mA
Ripple Max10% of Ue
Repeat Accuracy Maximum2% of Sr
Storage Temperature Range-25 to 85 °C
