Balluff

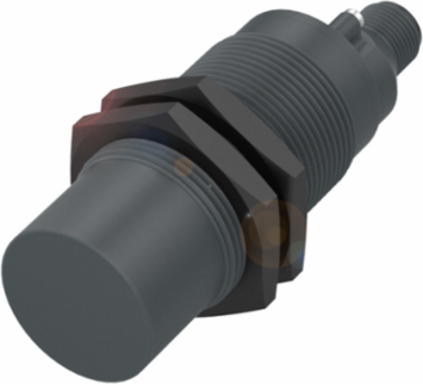

Balluff BCS M30BBM2-PPC30G-S04G Capacitive Level Sensor, Ø 30 x 87 mm, IP66, 1-30 mm Range

Capacitive Level Sensor, Ø 30 x 87 mm, IP66, 1-30 mm Range
  • MPN: BCS M30BBM2-PPC30G-S04G
  • PPN: BAL-BCS007F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$220.49/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 30 x 87 mm
Thread (A)
M30x1.5
Connection
Connector, M12x1-Male, 4-pin
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10-35 VDC
IP rating
IP66
SeriesM30
Installationnon-flush
Switching outputPNP NO/NC programmable
Range1-30 mm
Housing materialPBT
Ambient temperature-30-70 °C
Approval/ConformityCE, cULus, WEEE
