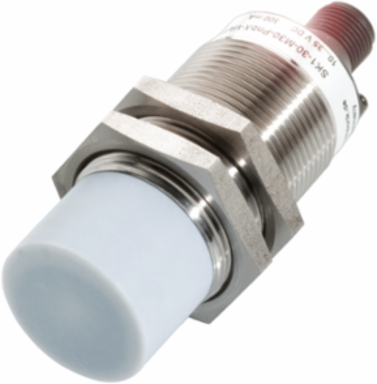

Balluff BCS M30T4M2-NPC30G-S04G Capacitive Level Sensor, PTFE Surface, 1-30 mm Range, IP66
- MPN: BCS M30T4M2-NPC30G-S04G
- PPN: BAL-BCS007M
CAD
$410.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Range
- 1-30 mm
- Operating Voltage
- 10-35 VDC
- Material sensing surface
- PTFE
- Thread Size
- M30x1.5
- Ambient Temperature
- -30 to 70 b0C
- IP Rating
- IP66
- Connection
- Connector, M12x1-Male, 4-pin
- Series
- M30
Switching Frequency100 Hz
Switching OutputNPN NO/NC programmable
InstallationNon-flush
Dimensiond8 30 x 86.5 mm
Housing MaterialStainless Steel (1.4301)
SensitivitySwitching distance adjustable
Approval/ConformityCE, cULus, WEEE
