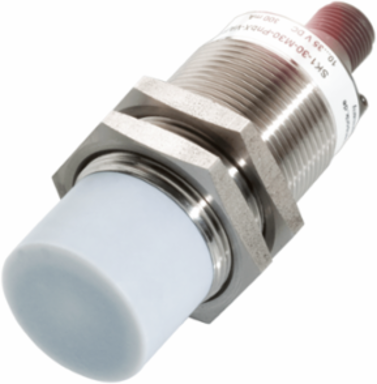

Balluff BCS M30T4M2-PPC30G-S04G Capacitive Level Sensor, Ø 30 x 86.5 mm, PTFE, IP66, Non-Flush
- MPN: BCS M30T4M2-PPC30G-S04G
- PPN: BAL-BCS007L
CAD
$351.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-35 VDC
- Rated Operating Distance
- 30 mm
- Ambient Temperature
- -30 to 70 °C
- Diameter
- 30 mm
- Material Sensing Surface
- PTFE
- IP Rating
- IP66
- Installation
- Non-flush
- Sensitivity
- Switching distance adjustable
Switching Frequency100 Hz
Measuring Range1-30 mm
Thread SizeM30x1.5
Length86.5 mm
Housing MaterialStainless Steel (1.4301)
Switching OutputPNP NO/NC programmable
Approval/ConformityCE, cULus, WEEE
ConnectionConnector, M12x1-Male, 4-pin
