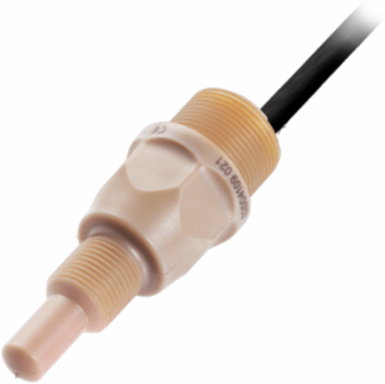

Balluff BCS S44KK02-GPCFNG-EP02 Capacitive Level Sensor 11.9 x 62.5 mm, IP67, 10-30 VDC
- MPN: BCS S44KK02-GPCFNG-EP02
- PPN: BAL-BCS0103
CAD
$304.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Voltage | 10-30 VDC |
|---|---|
| Ambient Temperature Range | -5 to 105 C |
| Diameter | 11.9 mm |
| Connection | Cable, 2.00 m, PUR |
| Housing Material | PEEK |
| Protection | Short-circuit protection |
| Series | S44 |
| Switching Output | PNP/NPN NO/NC codeable |
| Switching Frequency | 10 Hz |
|---|---|
| Length | 62.5 mm |
| Thread Size | G 1/4" |
| Installation Type | Non-flush |
| Material Sensing Surface | PEEK |
| Compliance | CE, WEEE |
| Sensitivity | media-dependent, adjustable |
