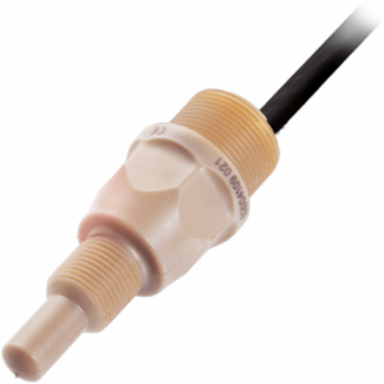

Balluff BCS S44KK03-GPCFAG-EP02 Capacitive Level Sensor, 13.7 x 62.5 mm, IP67, PEEK Housing
- MPN: BCS S44KK03-GPCFAG-EP02
- PPN: BAL-BCS010N
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Frequency | 5 Hz |
|---|---|
| Operating Voltage | 10-30 VDC |
| Ambient Temperature | -5 to 105 6C |
| Thread Size | 1/4" NPT |
| Material Sensing Surface | PEEK |
| Sensitivity | media-dependent, adjustable |
| Additional Features | Electrically conductive media, Foam and residue compensation |
| IP Rating | IP67, sensing surface IP68 10 bar |
|---|---|
| Switching Output | PNP/NPN NO/NC codeable |
| Dimension | d8 13.7 x 62.5 mm |
| Housing Material | PEEK |
| Connection | Cable, 2 m, PUR |
| Approval/Conformity | CE, WEEE |
