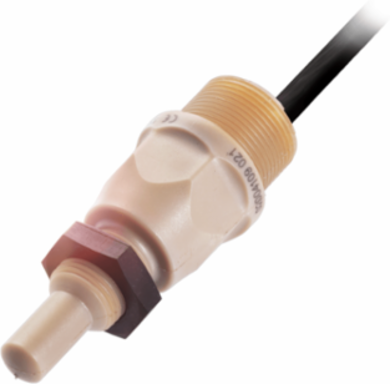

Balluff BCS S44KK01-GPCFAG-EP02 Capacitive Level Sensor, 12 x 62.5 mm, PEEK, IP67
- MPN: BCS S44KK01-GPCFAG-EP02
- PPN: BAL-BCS010L
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| Switching Output | PNP/NPN NO/NC codeable |
| Dimension | 8 mm x 62.5 mm |
| Connection | Cable, 2 m, PUR |
| Material Sensing Surface | PEEK |
| Ambient Temperature Range | -5 to 105 6C |
| Series | S44 |
| Switching Frequency | 5 Hz |
|---|---|
| Thread Size | M12x1 |
| Installation | Non-flush |
| Housing Material | PEEK |
| Additional Features | Electrically conductive media, Foam and residue compensation |
| Approval/Conformity | CE, WEEE |
