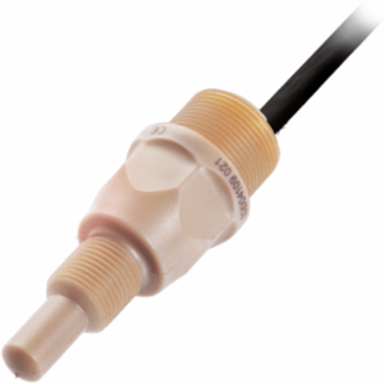

Balluff BCS S44KK03-GPCFNG-EP02 Capacitive Level Sensor, 1/4" NPT, PEEK Material, IP67, -5-105 C
- MPN: BCS S44KK03-GPCFNG-EP02
- PPN: BAL-BCS0104
CAD
$304.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-30 VDC |
|---|---|
| IP Rating | IP67 |
| Ambient Temperature | -5 to 105 6C |
| Material Sensing Surface | PEEK |
| Connection | Cable, 2 m, PUR |
| Approval/Conformity | CE, WEEE |
| Installation | non-flush |
| Switching Frequency | 10 Hz |
|---|---|
| Thread Size | 1/4 in. NPT |
| Dimension | D8 13.7 x 62.5 mm |
| Housing Material | PEEK |
| Switching Output | PNP/NPN NO/NC codeable |
| Sensitivity | media-dependent, adjustable |
| Series | S44 |
