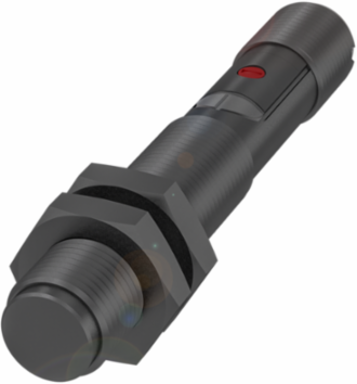

Balluff BCS M12BBG2-PSC40D-S04K Capacitive Sensor Ø 12 x 75 mm, PNP Normally Open, IP67 Rating

Capacitive Sensor Ø 12 x 75 mm, PNP Normally Open, IP67 Rating
  • MPN: BCS M12BBG2-PSC40D-S04K
  • PPN: BAL-BCS00PJ

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$146.62/ EA

Description

Designed for precision and reliability, the capacitive sensors for object detection from Balluff are an excellent choice for various industrial applications. These sensors feature a compact design with a flush mounting installation and are capable of detecting objects within a range of 1 to 4 mm. With an adjustable sensitivity and a robust IP67 rating, they are well-suited for challenging environments, operating effectively in temperatures ranging from -25 to 85 °C. The M12 connector ensures a secure connection, while the PNP normally open output provides versatile integration into existing systems.

Specifications

Specifications

Country of Origin
Hungary
Series
M12
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Range
1...4 mm
Housing material
PBT
Ambient temperature
-25...85 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
DimensionØ 12 x 75 mm
Thread (A)M12x1
ConnectionConnector, M12x1-Male, 4-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
