Balluff

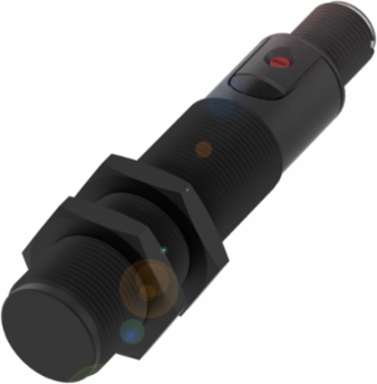

Balluff BCS M18BBI3-PSC80D-S04K Capacitive sensors for object detection - BCS00M8

Capacitive sensors for object detection - BCS00M8
  • MPN: BCS M18BBI3-PSC80D-S04K
  • PPN: BAL-BCS00M8

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$162.54/ EA

Description

Capacitive sensors for object detection - BCS00M8

Specifications

Specifications

Country of Origin
Hungary
Series
M18
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Range
1...8 mm
Housing material
PBT
Ambient temperature
-25...85 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
DimensionØ 18 x 88.5 mm
Thread (A)M18x1
ConnectionConnector, M12x1-Male, 3-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
