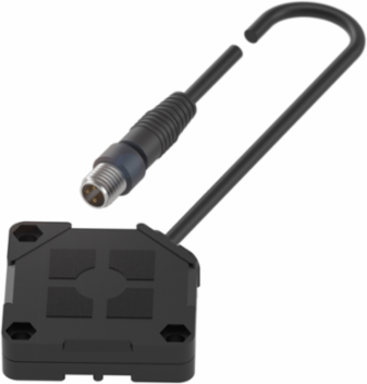

Balluff BCS Q40BBAA-POCFHC-EP00,3-GS49 Capacitive Level Sensor, 40 x 40 x 10 mm, IP67, 10-30 VDC
- MPN: BCS Q40BBAA-POCFHC-EP00,3-GS49
- PPN: BAL-BCS0135
CAD
$229.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected through glass and plastic walls with their active surface and without contact.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- No-load Current Max
- 11 mA
- Load Capacitance Max
- 10 µF
- Temperature Range
- -5 to 85 °C
- Utilization Category
- DC -13
- Connection
- Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
- Housing Material
- PBT
- Material Jacket
- PUR
- Approval/Conformity
- CE, cULus, WEEE
- MTTF
- 441 a
- Function
- Smart Level 50
- Sensitivity
- media-dependent, adjustable
- Additional Features
- Electrically conductive media, Foam and residue compensation
Rated Operating Current100 mA
Voltage Drop Static Max2.5 V
Switching Frequency10 Hz
Switching OutputPNP Normally closed (NC)
Dimension40 x 40 x 10 mm
Cable Diameter3 mm
Material Sensing SurfacePBT
IP RatingIP67
Storage Temperature-25 to 85 °C
Contamination Scale3
SeriesQ40
Installationflush with container outer wall
