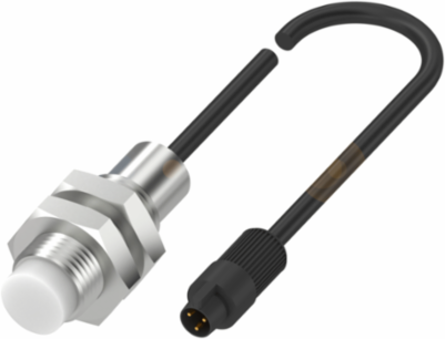

Balluff BCS M12T4D1-XXS80G-EP02-GZ01-002 Capacitive Sensor Head, M12 Thread, 1-8 mm Range, IP67 Rating
- MPN: BCS M12T4D1-XXS80G-EP02-GZ01-002
- PPN: BAL-BCS0019
CAD
$297.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our capacitive sensor heads are used when a sensor with integrated electronics would not function optimally due to the surroundings. For example at extreme temperatures or under the maximum pressure. Their compact design also makes them suitable for use in tight spaces. The sensor heads are operated via a separate amplifier.
Documentation & Downloads
Specifications
Additional
- Thread Size
- M12x1
- Rated Operating Distance
- 8 mm
- Sensitivity
- adjustable on base unit
- Measuring Frequency
- 100 Hz
- Hysteresis Max
- 10 %
- Temperature Drift Max
- 20 %
- Ambient Temperature Range
- -30 to 80 °C
- Tightening Torque
- 40 Nm
- Interface
- Special interface
- Material Cover
- POM
- Compliance
- CE, cULus, WEEE
Measuring Range1-8 mm
IP RatingIP67
Installationnon-flush
Rated Insulation Voltage75 V DC
Repeat Accuracy Max2 %
Housing MaterialStainless steel (1.4301)
DimensionØ 12 x 34 mm
ConnectionCable with connector, Special connector-Special connector, 2.00 m, PUR
Material Sensing SurfacePTFE
Material JacketPUR
