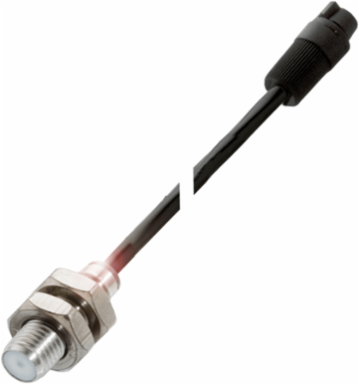

Balluff BCS M08T4C-XXS15C-EP02-GZ01-002 Capacitive Sensor Head, Stainless Steel, 8 x 25 mm, -30-80 C
- MPN: BCS M08T4C-XXS15C-EP02-GZ01-002
- PPN: BAL-BCS0014
CAD
$316.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our capacitive sensor heads are used when a sensor with integrated electronics would not function optimally due to the surroundings. For example at extreme temperatures or under the maximum pressure. Their compact design also makes them suitable for use in tight spaces. The sensor heads are operated via a separate amplifier.
Documentation & Downloads
Specifications
Additional
| Range | 0.1-1.5 mm |
|---|---|
| Dimension | x 25 mm |
| Housing Material | Stainless steel (1.4301) |
| Cover Material | POM |
| IP Rating | IP67 |
| Connection | Cable with connector, Special connector, 2.00 m, PUR |
| Series | M08 |
| Sensitivity | adjustable on base unit |
| Ambient Temperature | -30 to 80 B0C |
|---|---|
| Thread Size | M8x1 |
| Material Sensing Surface | PTFE |
| Jacket Material | PUR |
| Approval/Conformity | CE, cULus, WEEE |
| Installation | for flush mounting |
| Interface | Special interface |
