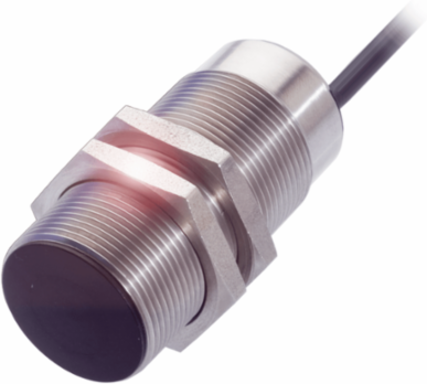

Balluff BCS M30B4I1-PSC15D-EP02 Capacitive Sensor, Ø 30 mm, 2-15 mm Range, IP67, M30x1.5 Thread
- MPN: BCS M30B4I1-PSC15D-EP02
- PPN: BAL-BCS00N2
CAD
$220.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Switching Output
- PNP normally open (NO)
- Ambient Temperature Range
- -25 to 85 °C
- Sensitivity
- Switching distance adjustable
- Rated Operating Current
- 100 mA
- Voltage Drop Max
- 1.5 V
- Hysteresis Max
- 15 % of Sr
- Temperature Drift Max
- 20 % of Sr [-5 to 55 °C]
- Rated Insulation Voltage
- 75 V DC
- Polarity Reversal Protection
- Yes
- Function Indicator
- Yes
- Contamination Scale
- 1
- Material Sensing Surface
- PBT
- IP Rating
- IP67
- Connection
- Cable, 2.00 m, PUR jacket
- Storage Temperature Range
- -25 to 85 °C
- Cover Material
- PBT, PA
- Cable Diameter
- 4.60 mm
- Number of Conductors
- 3
- MTTF (40 °C)
- 343 years
Measuring Range2-15 mm
Switching Frequency100 Hz
Operating Voltage10-30 VDC
No-Load Current18 mA
Ready Delay Max300 ms
Repeat Accuracy Max2 % of Sr
Output TypePNP normally open (NO)
Utilization CategoryDC -13
Short-Circuit ProtectionYes
Power IndicatorYes
Housing MaterialStainless steel (1.4305)
Thread SizeM30x1.5
DimensionØ 30 x 65.5 mm
InstallationFlush mounting
Tightening Torque90 Nm
Material JacketPUR
Conductor Cross-Section0.34 mm²
Approval/ConformityCE, cULus, WEEE
SeriesM30
