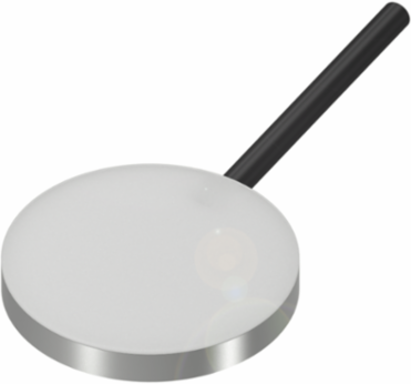

Balluff BCS D30T401-PSC15C-EP02 Capacitive Sensor, 30 x 4 mm, Range 2-15 mm, IP67
- MPN: BCS D30T401-PSC15C-EP02
- PPN: BAL-BCS003A
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Range | 2-15 mm |
|---|---|
| Rated Operating Current | 300 mA |
| Voltage Drop Max | 0.8 V |
| Repeat Accuracy Max | 2 % of Sr |
| Size | d8 30 x 4 mm |
| Connection | Cable, 2 m, PUR |
| Housing Material | Stainless steel (1.4301) |
| IP Rating | IP67 |
| Approval/Conformity | CE, cULus, WEEE |
| Operating Voltage | 10-35 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Hysteresis Max | 15 % of Sr |
| Temperature Drift Max | 20 % of Sr [-5 to 55 6C] |
| Installation | Flush mounting |
| Material Sensing Surface | PTFE |
| Material | Stainless steel, PUR, PTFE |
| Ambient Temperature | -30 to 70 6C |
| Series | D30 |
