Balluff

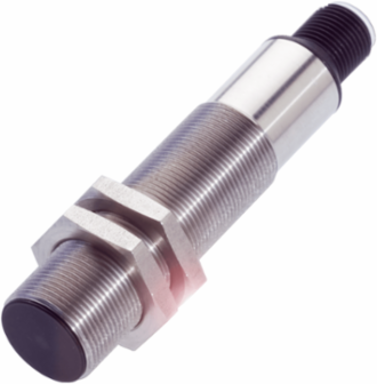

Balluff BCS M18B4I3-PSC80D-S04K Capacitive Sensor, M18 Thread, 1-8 mm Detection Range, IP67

Capacitive Sensor, M18 Thread, 1-8 mm Detection Range, IP67
  • MPN: BCS M18B4I3-PSC80D-S04K
  • PPN: BAL-BCS00MF

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$184.95/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Dimension
Ø 18 x 88.5 mm
Thread (A)
M18x1
Connection
Connector, M12x1-Male, 3-pin
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP67
SeriesM18
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Range1-8 mm
Housing materialStainless steel (1.4305)
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
