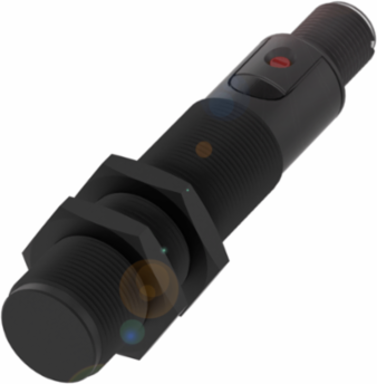

Balluff BCS M18BBI3-POC80D-S04K Capacitive Sensor 18 x 88.5 mm, IP67, PNP Normally Closed
- MPN: BCS M18BBI3-POC80D-S04K
- PPN: BAL-BCS00MH
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Switching Output | PNP Normally Closed (NC) |
|---|---|
| Switching Frequency | 100 Hz |
| Diameter | 18 mm |
| Thread Size | M18x1 |
| Connection | Connector, M12x1-Male, 3-pin |
| Material Housing | PBT |
| Approval/Conformity | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
| Operating Voltage | 10-30 VDC |
|---|---|
| Measuring Range | 1-8 mm |
| Length | 88.5 mm |
| Installation | Flush Mounting |
| Material Sensing Surface | PBT |
| IP Rating | IP67 |
| Ambient Temperature | -25-85 C |
| Series | M18 |
