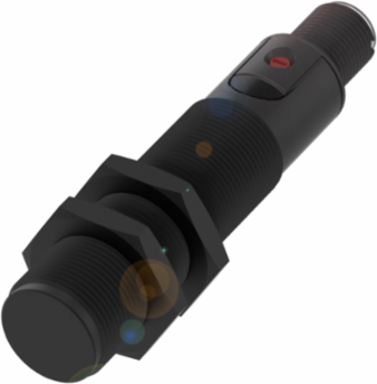

Balluff BCS M18BBI3-NSC80D-S04K Capacitive Sensor, Ø 18 x 88.5 mm, 1-8 mm Range, IP67
- MPN: BCS M18BBI3-NSC80D-S04K
- PPN: BAL-BCS00MJ
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Switching Frequency
- 100 Hz
- Ambient Temperature Range
- -25 to 85 B0C
- Tightening Torque
- 2 Nm
- Thread Size
- M18x1
- Housing Material
- PBT
- Installation
- Flush mounting
- Approval/Conformity
- CE, cULus, WEEE
Range1-8 mm
IP RatingIP67
Output TypeNPN Normally open (NO)
DimensionD8 18 x 88.5 mm
ConnectionM12x1-Male, 3-pin, A-coded
Material Sensing SurfacePBT
SeriesM18
