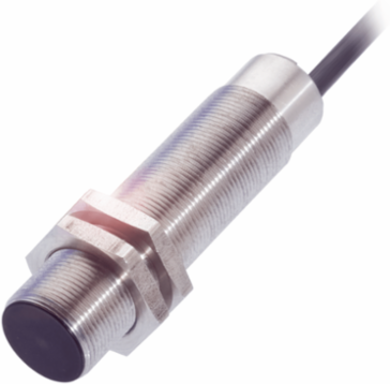

Balluff BCS M18B4N1-NOC80D-EP02 Capacitive Sensor, 18 x 75.5 mm, Range 1-8 mm, IP67
- MPN: BCS M18B4N1-NOC80D-EP02
- PPN: BAL-BCS00LP
CAD
$268.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Range | 1-8 mm |
|---|---|
| Switching Frequency | 100 Hz |
| Dimension | 18 x 75.5 mm |
| Installation | Flush mounting |
| Housing Material | Stainless steel (1.4305) |
| IP Rating | IP67 |
| Series | M18 |
| Operating Voltage | 10-30 VDC |
|---|---|
| Ambient Temperature | -25 to 85 C |
| Thread Size | M18x1 |
| Connection | Cable, 2 m, PUR |
| Material Sensing Surface | PBT |
| Approval/Conformity | CE, cULus, WEEE |
| Switching Output | NPN normally closed (NC) |
