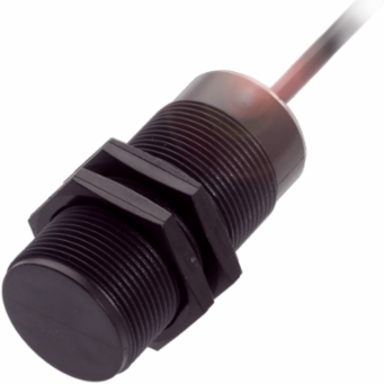

Balluff BCS M30BBI1-NSC15D-EP02 Capacitive Sensor, M30 Thread, Ø 30 x 66.5 mm, 2-15 mm Detection Range
- MPN: BCS M30BBI1-NSC15D-EP02
- PPN: BAL-BCS00NP
CAD
$167.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 V DC
- Measuring Range
- 2-15 mm
- Size / Thread
- M30x1.5
- Ambient Temperature
- -25 to 85 b0C
- Material Sensing Surface
- PBT
- Approval / Conformity
- CE, cULus, WEEE
- Sensitivity
- Switching distance adjustable
- Connection
- Cable, 2 m, PUR
Switching Frequency100 Hz
Switching OutputNPN Normally open (NO)
Dimensiond8 30 x 66.5 mm
Housing MaterialPBT
Protection RatingIP67
SeriesM30
InstallationFlush mounting
