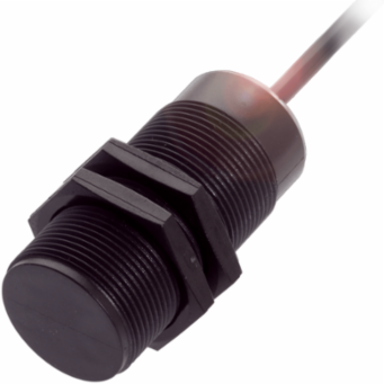

Balluff BCS M30BBI1-POC15D-EP02 Capacitive Sensor M30, 2-15 mm Range, PBT Housing, IP67, 2 m Cable

Capacitive Sensor M30, 2-15 mm Range, PBT Housing, IP67, 2 m Cable
  • MPN: BCS M30BBI1-POC15D-EP02
  • PPN: BAL-BCS00NN

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$162.21/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Dimension
Ø 30 x 66.5 mm
Thread (A)
M30x1.5
Connection
Cable, 2.00 m, PUR
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
IP rating
IP67
SeriesM30
Installationfor flush mounting
Switching outputPNP Normally closed (NC)
Range2-15 mm
Housing materialPBT
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
