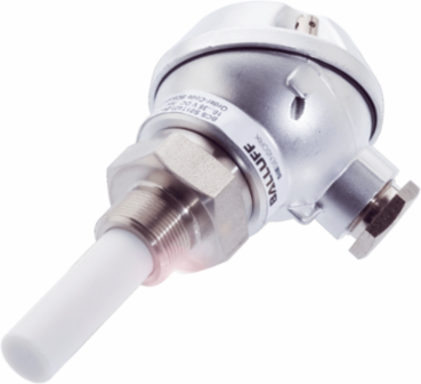

Balluff BCS S02T401-POCFNG-KM16-T02 Capacitive Sensor, 10-35 VDC, IP67, Stainless Steel, 10 Bar
- MPN: BCS S02T401-POCFNG-KM16-T02
- PPN: BAL-BCS006N
CAD
$451.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
We sell specific capacitive sensors for high technical demands as well as high temperatures and pressure. As capacitive adhesive sensors, they adapt to the surface to be fixed in a particularly simple and flexible manner. Their stainless steel and Teflon housing makes them ideal for use in harsh environments. They feature a wide range of operating voltages and are available in particularly small configurations.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-35 VDC |
|---|---|
| Switching Frequency | 5 Hz |
| Housing Material | Stainless Steel (1.4305) |
| IP Rating | IP67 |
| Ambient Temperature | -30-125 C |
| Switching Output | PNP Normally closed (NC) |
| Connection | Clamping terminal |
| Pressure Rating Max. | 10 bar |
|---|---|
| Dimension | 54.8 x 48.5 x 106 mm |
| Material Sensing Surface | PTFE |
| Approval/Conformity | CE, WEEE |
| Installation | Non-flush |
| Sensitivity | Media-dependent, adjustable |
| Thread (A) | R 3/8" |
