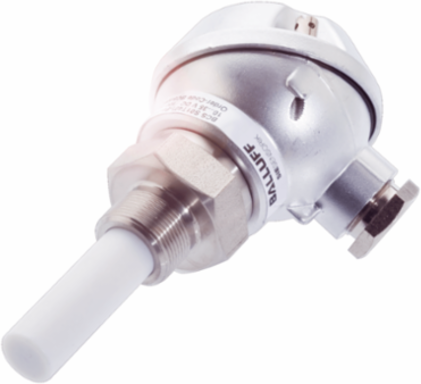

Balluff BCS S03T401-PSCFNH-KM16-T02 Capacitive Sensor, IP67, Stainless Steel, -30-125 C, 10-35 VDC
- MPN: BCS S03T401-PSCFNH-KM16-T02
- PPN: BAL-BCS00A6
CAD
$451.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
We sell specific capacitive sensors for high technical demands as well as high temperatures and pressure. As capacitive adhesive sensors, they adapt to the surface to be fixed in a particularly simple and flexible manner. Their stainless steel and Teflon housing makes them ideal for use in harsh environments. They feature a wide range of operating voltages and are available in particularly small configurations.
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 10-35 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Sensitivity | media-dependent, adjustable |
| Dimension | 54.8 x 48.5 x 106 mm |
| Material | Stainless steel (1.4305), PTFE |
| Installation | non-flush |
| Polarity Reversal Protected | Yes |
| Function Indicator | Yes |
| Approval/Conformity | CE, WEEE |
| Pressure Rating Max | 10 bar |
|---|---|
| Switching Output | PNP Normally open (NO) |
| Ambient Temperature | -30 to 125 C |
| Thread Size | 3/8 in NPTF |
| Connection | Clamping terminal |
| Protection Class | II |
| Short-Circuit Protection | Yes |
| IP Rating | IP67, IP68 10 bar (sensing surface) |
| Series | S03 |
