Balluff

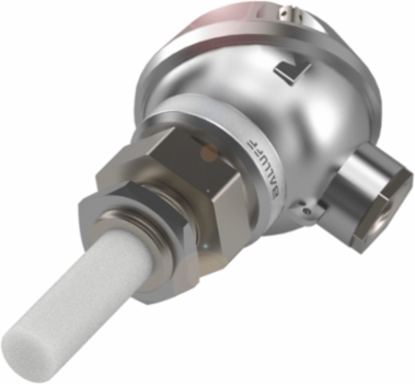

Balluff BCS S01T401-POCFNG-KM16-T02 Capacitive Sensor, M18x1 Thread, IP67, -30-125 °C, Stainless Steel

Capacitive Sensor, M18x1 Thread, IP67, -30-125 °C, Stainless Steel
  • MPN: BCS S01T401-POCFNG-KM16-T02
  • PPN: BAL-BCS006J

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$430.51/ EA

Description

We sell specific capacitive sensors for high technical demands as well as high temperatures and pressure. As capacitive adhesive sensors, they adapt to the surface to be fixed in a particularly simple and flexible manner. Their stainless steel and Teflon housing makes them ideal for use in harsh environments. They feature a wide range of operating voltages and are available in particularly small configurations.

Specifications

Specifications

Dimension
54.8 x 48.5 x 106 mm
Thread (A)
M18x1
Connection
Clamping terminal
Switching frequency
5 Hz
Housing material
Stainless steel (1.4305)
Ambient temperature
-30-125 °C
Operating voltage Ub
10-35 VDC
IP rating
IP67
SeriesS01
Installationnon-flush
Switching outputPNP Normally closed (NC)
Sensitivitymedia-dependent, adjustable
Material sensing surfacePTFE
Pressure rating max.10 bar
Approval/ConformityCE, WEEE
