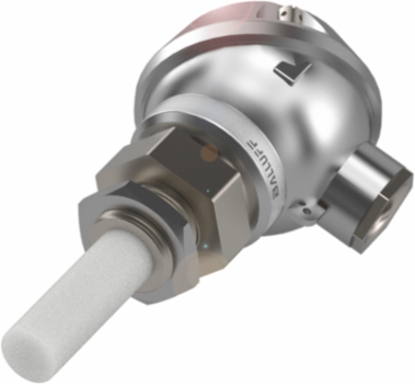

Balluff BCS S01T401-NSCFNG-KM16-T02 Capacitive Sensor, PTFE Sensing Surface, 54.8 x 48.5 x 106 mm, IP67
- MPN: BCS S01T401-NSCFNG-KM16-T02
- PPN: BAL-BCS006K
CAD
$430.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
We sell specific capacitive sensors for high technical demands as well as high temperatures and pressure. As capacitive adhesive sensors, they adapt to the surface to be fixed in a particularly simple and flexible manner. Their stainless steel and Teflon housing makes them ideal for use in harsh environments. They feature a wide range of operating voltages and are available in particularly small configurations.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-35 VDC
- Switching Frequency
- 5 Hz
- Thread Size
- M18x1
- Material
- PTFE sensing surface, Stainless steel (1.4305) housing
- Switching Output
- NPN Normally open (NO)
- Installation
- non-flush
- Load Capacitance Max
- 10 µF
- Rated Operating Current
- 100 mA
- Compliance
- CE, WEEE
Pressure Rating Max10 bar
Ambient Temperature Range-30 to 125 °C
Dimensions54.8 x 48.5 x 106 mm
ConnectionClamping terminal
Sensitivitymedia-dependent, adjustable
Protection ClassII
Voltage Drop Max2.7 V
Contamination Scale3
SeriesS01
