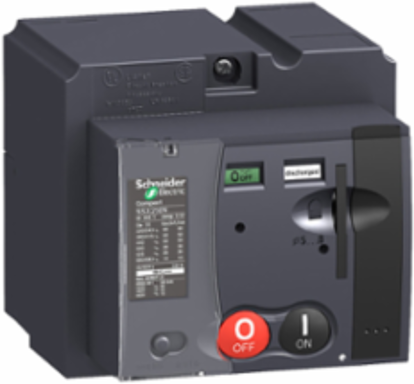

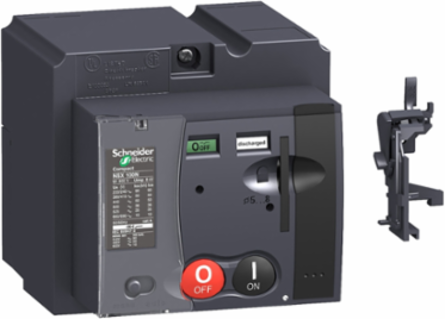

Schneider Electric LV431543 Standard motor mechanism module MT250, ComPacT NSX250, 24/30VDC

MPN: LV431543
PPN: SCH-LV431543
UNSPSC: 39121601

$4937.35

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This is a standard motor mechanism for Compact NSX 250 and PowerPact Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 24VDC to 30VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.

Features

Schneider Electric green signature style for the entire ComPacT range
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
Gain the confidence that all auxiliaries are on the right spot
Ergonomic new toggle for easier breaker manual operation

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy

Weight	1386 g

Complementary Attributes

Maximum Operating Frequency	<= 2 cycles per minute, <= 2 cycles per minute
Line Rated Current	250 A

Maximum Power Consumption In W	500 W - closing, 500 W - opening
Uc Control Circuit Voltage	24...30 V DC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Signal Type	maintained, impulse
Locking Options Description	1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position
Response Time	< 700 ms open, < 700 ms open, < 80 ms closed, < 80 ms closed< 700 ms open, < 700 ms open, < 80 ms closed, < 80 ms closed
Carbon Footprint Of The End Of Life Phase C1 To C4	3 kg CO2 eq., 3.3131598173515986
Carbon Footprint Of The Manufacturing Phase A1 To A3	9 kg CO2 eq., 9.12819178082192
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	MT250
Mounting Mode	fixed
Product Or Component Type	motor mechanism
Range	ComPacT
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	14 kg CO2 eq.
Control Circuit Voltage 4	24...30 V
Control Circuit Voltage 4 Control Circuit Voltage	24...30 V
Data Source	extrapolated product
Customs Code	8412801000
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Control Type	standard, standard
Range Of Product	ComPact NSX100...250, ComPact NSX100...250 DC
Carbon Footprint Of The Distribution Phase A4	0.1812438356164384, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.25756073059360735, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.9 kg CO2 eq., 0.88804
Local Publishable Date	2026-03-26
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308038EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1919
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Device Application	automatic spring charging
Energy Efficiency Optimized	False
Product Availability	Non-Stock - Not normally stocked in distribution facility
Provided Equipment	SDE adaptor
Returnability	No
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit Type	DC
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Halogen Free Status	Product contains halogen above thresholds
Functional Unit Description	To provide easy and sure closing/opening operations. The characteristics of this motor mechanism are as follows:& 10- Control voltage: 220-240 V AC 50/60Hz, 208-277 V AC 60Hz& 10- Maximum number of cycles: 20000 C/O (electrical endurance of a NSX250 frame at 50%In, 440V AC)& 10- Maximum number of cycles per minute: 4 C/O& 10- Opening response time: <lt/>700ms& 10- Closing response time: <lt/>80ms& 10- Power consumption: <lt/>500VA& 10- Reference Lifetime: 10 years
Functional Unit Unit	unité (unit)
Recyclability Potential In %	73

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Halogene Performance	Product contains halogen above thresholds
Mercury Free	Yes
Circularity Profile	ENVEOLI2308038EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-10-01
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	13.768196164383564
Environmental Disclosure	ENVPEP2308038EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2308038EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
