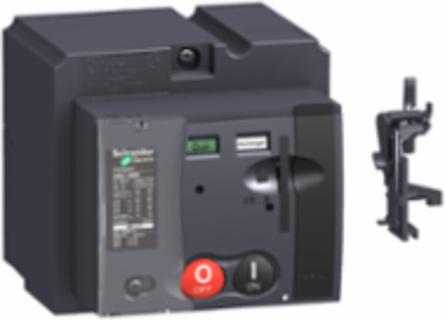

Schneider Electric LV429437 Standard Motor Mechanism Module for ComPacT NSX100/160, 48-60V DC, 160A
- MPN: LV429437
- PPN: SCH-LV429437
CAD
$3279.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 48VDC to 60VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy
Complementary Attributes
- Line Rated Current
- 160 A, 100 A
- Maximum Operating Frequency
- 4 per minute
Maximum Power Consumption In W500 W - closing, 500 W - opening
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Signal Type
- impulse, maintained
- Locking Options Description
- 1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position
- Response Time
- < 700 ms open, < 700 ms open, < 80 ms closed, < 80 ms closed< 700 ms open, < 700 ms open, < 80 ms closed, < 80 ms closed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 3.380092338914257
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.312599695585998
- Local Data Status
- Publishable
- Return Indicator
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308038EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1919
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Application
- automatic spring charging
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- SDE adaptor
- Returnability
- No
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 4 Control Circuit Type
- DC
- Pep Code
- ENVPEP2308038EN
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Uc] Control Circuit Voltage
- 48...60 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 22.625
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 1.3204
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 4.3445
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 4.3445
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Control Typestandard, standard
Range Of ProductComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC
Carbon Footprint Of The Distribution Phase [A4]0.1849053272450533, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2627639776763065, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.9 kg CO2 eq., 0.88804
Local Publishable Date2025-04-05
Stocking FlagY
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameMT250
Mounting Modefixed
Product Or Component Typemotor mechanism
RangeComPacT
Software Versionv5.9.4
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Control Circuit Voltage 448...60 V
Control Circuit Voltage 4 Control Circuit Voltage48...60 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo provide easy and sure closing/opening operations. The characteristics of this motor mechanism are as follows:& 10- Control voltage: 220-240 V AC 50/60Hz, 208-277 V AC 60Hz& 10- Maximum number of cycles: 20000 C/O (electrical endurance of a NSX250 frame at 50%In, 440V AC)& 10- Maximum number of cycles per minute: 4 C/O& 10- Opening response time: <lt/>700ms& 10- Closing response time: <lt/>80ms& 10- Power consumption: <lt/>500VA& 10- Reference Lifetime: 10 years
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; PL
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %73
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)1.414 kg
Warranty (In Months)18
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]9.5636
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]26.969
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]22.625
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308038EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint14.028401339421613
Environmental DisclosureENVPEP2308038EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308038EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC
- Provided Equipment
- SDE adaptor
Product Or Component Typemotor mechanism
ETIM
- ETIM 8
- EC001030
ETIM 9EC001030
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
