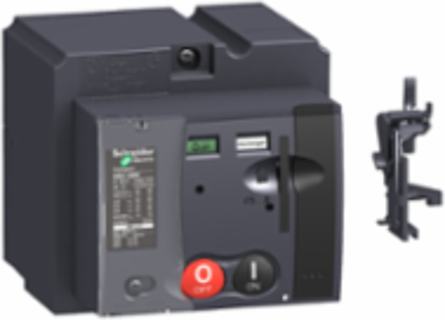

Schneider Electric LV429439 Standard Motor Mechanism Module MT250 for ComPacT NSX100/160, 250VDC, 500W
- MPN: LV429439
- PPN: SCH-LV429439
CAD
$3279.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This is a standard motor mechanism for Compact NSX 100/160 and PowerPacT Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 250VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Documentation & Downloads
Specifications
Key Specifications
| [Uc] Control Circuit Voltage | 250 V DC |
|---|---|
| Product Or Component Type | motor mechanism |
| Mounting Mode | fixed |
| Device Application | automatic spring charging |
| Range Compatibility | ComPacT new generation ComPacT NSX100 new generation || ComPacT new generation ComPacT NSX160 new generation || ComPact ComPacT NSX DC new generation NSX100 DC || ComPact ComPacT NSX DC new generation NSX160 DC |
|---|---|
| Control Type | standard |
| [In] Rated Current | 100 A || 160 A |
| Device Short Name | MT250 |
Complementary
| Locking Options Description | 1 to 3 padlocks Ø 5 to Ø 8 || padlocking in OFF position |
|---|---|
| Control Signal Type | impulse || maintained |
| Maximum Operating Frequency | 4 per minute |
| Response Time | < 700 ms open || < 80 ms closed |
|---|---|
| Provided Equipment | SDE adaptor |
| Maximum Power Consumption In W | 500 W - closing || 500 W - opening |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2308038EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI2308038EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
| Eu Rohs Directive | Compliant with Exemptions |
Contractual warranty
| Warranty | 18 months |
|---|
