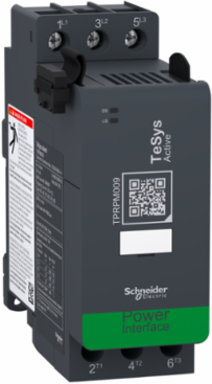

Schneider Electric TPRPM009 TeSys Island Power Module, 15A AC-1, 9A AC-3, 4kW, 5hp

MPN: TPRPM009
PPN: SCH-TPRPM009
UNSPSC: 39121521

$379.42

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys island power module, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Features

Power module connected to an automation controller through a bus coupler
Operational only when connected to a bus coupler
Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
All adjustments and setting are digitized, no mechanical dials or dip switches
Embedded Cybersecurity (Achilles Level 2)

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	115 mm

Weight	304 g

Complementary Attributes

Maximum Horse Power Rating	2 hp at 240 V AC 60 Hz for 3 phase motors0.33 hp at 120 V AC 60 Hz for 1 phase motors1 hp at 240 V AC 60 Hz for 1 phase motors, 2 hp at 208 V AC 60 Hz for 3 phase motors5 hp at 480 V AC 60 Hz for 3 phase motors7.5 hp at 600 V AC 60 Hz for 3 phase motors
Ue Rated Operational Voltage	<= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz<= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz, <= 690 V AC 47...63 Hz
Uc Control Circuit Voltage	24 V DC supplied by the bus coupler

Ie Rated Operational Current	9 A (at <50 °C) at <= 440 V AC-315 A (at <50 °C) at <= 440 V AC-1, 15 A (at <50 °C) AC-3e
Ui Rated Insulation Voltage	690 V IEC 60947-4-1600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Uimp Rated Impulse Withstand Voltage	6 kV

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Local Signalling	1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)
Motor Power Kw	2.2 kW at 230 V AC 50 Hz4 kW at 380...415 V AC 50 Hz, 4 kW at 440 V AC 50 Hz5.5 kW at 500 V AC 50 Hz, 5.5 kW at 690 V AC 50 Hz
Tightening Torque	1.7-1.7 N.m flat Ø 6 mm, 1.7-1.7 N.m Philips No 2
Certificate Agency	CCC, CSA, EAC, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3134869562713522, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 4.230908995823702
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	TPRPM
Fire Resistance	960 °C UL 94850 °C IEC 60695-2-1650 °C IEC 60695-2-12
Number Of Poles	3P
Power Dissipation In W	0.6 W at Ie AC-3
Product Name	TeSys island
Protective Treatment	TC
Reset	remotely or automatically
Shock Resistance	15 gn 11 ms) IEC 60068-2-27
Sustainable Packaging	Yes
Thermal Protection Adjustment Range	0.18-9 A
Vibration Resistance	1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6
Database Version	2024-01
Height Nominal	121 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	15 A (at 50 °C)
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Pep End Of Validity Date Calculated	0012-03-19

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Function Available	upstream voltage presence detection, electronic thermal overload protection, monitoring of currents, control of third party power devices when associated to TPRDG IO module
Metering Type	time device ON, number of faults, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmax
Protection Type	thermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, phase loss, rapid restart lockout, phase reversal, phase unbalance, phase sequence, ground current
Connections Terminals	screw-clamp terminals 2 1.5-4 mm² 16 AWG...12 AWG)flexible without cable endscrew-clamp terminals 1 1-4 mm² 16 AWG...12 AWG)rigid, screw-clamp terminals 2 1-4 mm² 16 AWG...12 AWG)rigid, screw-clamp terminals 1 1.5-4 mm² 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 1 1-4 mm² 16 AWG...12 AWG)flexible with cable end, screw-clamp terminals 2 1-2.5 mm² 16 AWG...14 AWG)flexible with cable end
Carbon Footprint Of The Distribution Phase A4	0.030457986613561475, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1 kg CO2 eq., 0.11084779739386698
Carbon Footprint Of The Use Phase B2 B3 B4 B6	4 kg CO2 eq., 4.4874976772673385
Local Publishable Date	2026-06-27
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1904009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Current Consumption	60 mA
Energy Efficiency Optimized	False
Mounting Mode	horizontal and vertical 35 mm symmetrical DIN rail)
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	power module
Range Of Product	TeSys
Returnability	Yes
Software Version	v6.2.5-6
Thermal Overload Class	class 5…30
Total Lifecycle Carbon Footprint	9 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	45 mm
Customs Code	8537109170
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.TeSys island is designed to switch, protect, and manage motors and other electrical loads up to 80 (AC3) in an electrical control panel for 10 years.
Functional Unit Unit	unit
Recyclability Potential In %	49

Environment Attributes Main

Ambient Air Temperature For Operation	-10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating50-60 °C with current derating
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	9.173199413369822
Circularity Profile	ENVEOLI1904009EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	TPRBC bus couplerTPRDG digital IO moduleTPRAN analog IO module
Relative Humidity	5-95 %
Pep Verification Date	0007-03-19
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1904009_V3-EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1904009_V3-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
