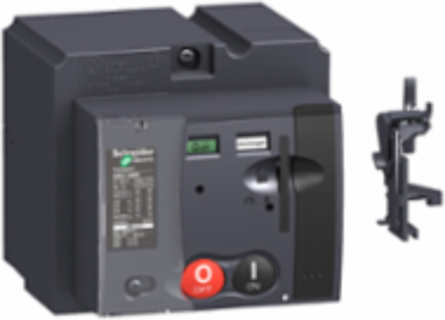

Schneider Electric LV431540 Motor Mechanism Module MT250 for ComPact NSX250, 110/130 V AC, 250 A
- MPN: LV431540
- PPN: SCH-LV431540
CAD
$4668.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This is a standard motor mechanism for Compact NSX 250 and PowerPacT Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 110VAC to 130VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 110...130 V AC 50/60 Hz
- Product Or Component Type
- motor mechanism
- Mounting Mode
- fixed
- Device Application
- automatic spring charging
Range CompatibilityComPacT new generation ComPacT NSX250 new generation || ComPacT new generation ComPacT NSX DC new generation NSX250 DC
Control Typestandard
[In] Rated Current250 A
Device Short NameMT250
Complementary
- Locking Options Description
- padlocking in OFF position || 1 to 3 padlocks Ø 5 to Ø 8
- Control Signal Type
- impulse || maintained
- Maximum Operating Frequency
- 4 per minute
Response Time< 700 ms open || < 80 ms closed
Provided EquipmentSDE adaptor
Maximum Power Consumption In Va500 VA closing || 500 VA opening
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2308038EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2308038EN
Contractual warranty
- Warranty
- 18 months
