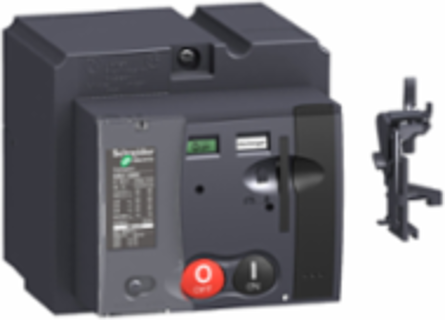

Schneider Electric LV429438 Standard Motor Mechanism Module for ComPact NSX 100/160, 110-130 VDC, 500W
- MPN: LV429438
- PPN: SCH-LV429438
CAD
$3279.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 110VDC to 130VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Italy
Complementary Attributes
- Line Rated Current
- 160 A, 100 A
- Maximum Operating Frequency
- 4 per minute
Maximum Power Consumption In W500 W - closing, 500 W - opening
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Signal Type
- impulse, maintained
- Locking Options Description
- 1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position
- Response Time
- < 700 ms open, < 700 ms open, < 80 ms closed, < 80 ms closed< 700 ms open, < 700 ms open, < 80 ms closed, < 80 ms closed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 3.346626078132928
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.22039573820396
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- MT250
- Mounting Mode
- fixed
- Product Or Component Type
- motor mechanism
- Range
- ComPacT
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 14 kg CO2 eq.
- Control Circuit Voltage 4
- 110...130 V
- Control Circuit Voltage 4 Control Circuit Voltage
- 110...130 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To provide easy and sure closing/opening operations. The characteristics of this motor mechanism are as follows:& 10- Control voltage: 220-240 V AC 50/60Hz, 208-277 V AC 60Hz& 10- Maximum number of cycles: 20000 C/O (electrical endurance of a NSX250 frame at 50%In, 440V AC)& 10- Maximum number of cycles per minute: 4 C/O& 10- Opening response time: <lt/>700ms& 10- Closing response time: <lt/>80ms& 10- Power consumption: <lt/>500VA& 10- Reference Lifetime: 10 years
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; PL
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 73
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 1.4 kg
- Warranty (In Months)
- 18
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 9.5636
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 26.969
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 22.625
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Control Typestandard, standard
Range Of ProductComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC
Carbon Footprint Of The Distribution Phase [A4]0.18307458143074584, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2601623541349569, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.9 kg CO2 eq., 0.88804
Local Publishable Date2025-12-09
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308038EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1919
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationautomatic spring charging
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided EquipmentSDE adaptor
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 4 Control Circuit TypeDC
Pep CodeENVPEP2308038EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage110...130 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]22.625
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1.3204
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]4.3445
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4.3445
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308038EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-10-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint13.898298751902592
Environmental DisclosureENVPEP2308038EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308038EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- ComPacT NSX100...250 DC, ComPact NSX100...250, ComPact NSX100...250 DC
- Provided Equipment
- SDE adaptor
Product Or Component Typemotor mechanism
ETIM
- ETIM 8
- EC001030
ETIM 9EC001030
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
