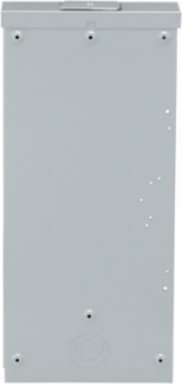

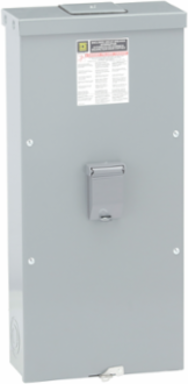

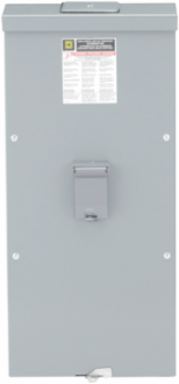

Square D J250R Circuit Breaker Enclosure, 15A to 250A, NEMA 3R, 14.47 Inch W x 31.05 Inch H x 6.28 Inch D

Circuit Breaker Enclosure, 15A to 250A, NEMA 3R, 14.47 Inch W x 31.05 Inch H x 6.28 Inch D - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/a34d8b9b76ec16bee8d24794ab528c38e6b58946-medium.png

Circuit Breaker Enclosure, 15A to 250A, NEMA 3R, 14.47 Inch W x 31.05 Inch H x 6.28 Inch D

Square D J250R Circuit Breaker Enclosure, 15A to 250A, NEMA 3R, 14.47 Inch W x 31.05 Inch H x 6.28 Inch D

MPN: J250R
UPC: 785901607861
PPN: SCH-J250R

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2072.08/ EA

Qty:

Loading add to cart quantity...

Description

The enclosures for the family of PowerPact circuit breakers H- through Q-frame are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted. The enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. Enclosures accept 100% rated circuit breakers [8]. The enclosures are not compatible with earth-leakage or ground-fault modules.

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1408006EN

Pvc Free: Yes

Eu Rohs Directive: Compliant

Halogen Content Performance: Halogen free plastic parts product

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Height: 31.05 in

Depth: 6.28 in

Width14.47 in

Specifications

Product Destination: circuit breaker H-Frame 15-250 A || circuit breaker J-Frame 15-250 A
