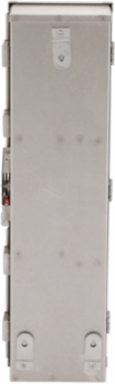

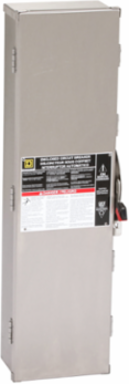

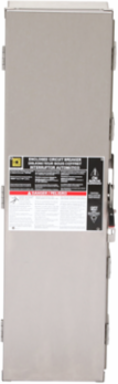

Square D J250SS PowerPacT H/J Circuit Breaker Enclosure, 15A-250A, 2 & 3 Pole, NEMA 4, Stainless Steel
Square D J250SS PowerPacT H/J Circuit Breaker Enclosure, 15A-250A, 2 & 3 Pole, NEMA 4, Stainless Steel
- MPN: J250SS
- UPC: 785901101734
- PPN: SCH-J250SS
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. The enclosure is not compatible with earth-leakage or ground-fault modules, H, J-frame circuit breakers with MicroLogic trip units can be used with these enclosure without communication accessories and trip unit is not accessible or visible Encloser acceptes 80 % and 100% rated 2 and 3 poles 15A to 250A circuit breakers. This NEMA 3, 3R, 4, 4X, 5, and 12 enclosure has dimensions as Height of 32.26 inch, Width of 9.72 inch and Depth of 7.94 inch.
Specifications
Environment
- Product Certifications
- UL || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1408006EN
- Pvc Free
- Yes
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- [In] Rated Current
- 150-250 A
- Poles Description
- 2P || 3P
- Width
- 247 mm
- Net Weight
- 12.25 kg
Height819 mm
Enclosure Materialstainless steel
Depth202 mm
Specifications
- Circuit Breaker Type
- JGL || JJL || JLL || JDL
Product Destinationcircuit breaker J-Frame 2P || circuit breaker J-Frame 3P
