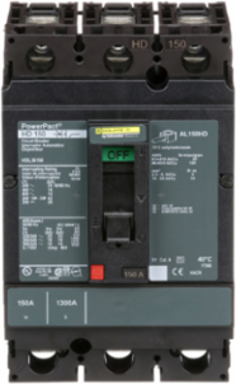

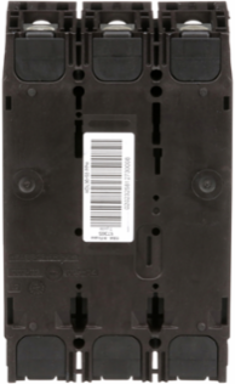

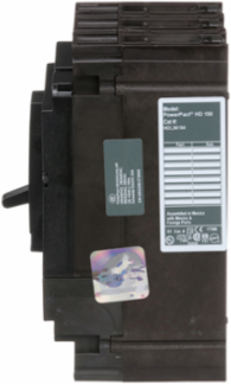

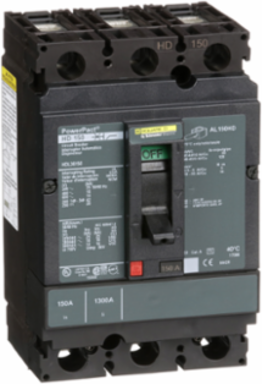

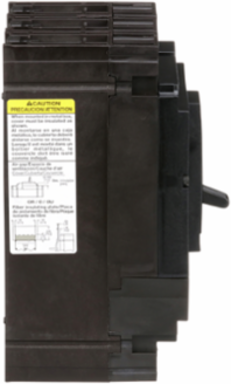

Square D HDL36150 PowerPact H Circuit Breaker 150A 3P 600VAC 14kA Thermal-Magnetic
- MPN: HDL36150
- UPC: 785901623212
- PPN: SCH-HDL36150
CAD
$3122.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- This 3-pole PowerPact H-frame molded case circuit breaker (MCCB) features a 150A continuous current rating with a robust interrupting capacity of 14kA at 600VAC, 18kA at 480VAC, and 25kA at 240VAC. This ensures your high-voltage distribution networks and heavy machinery remain fully protected against severe electrical faults, preventing costly equipment damage and minimizing facility downtime.
- Built with reliable thermal-magnetic trip technology, the breaker utilizes a bimetal switch to handle long-term thermal overloads and an electromagnetic mechanism for instantaneous short-circuit protection at a 1700A magnetic trip threshold. This dual-action mechanism prevents nuisance tripping from minor, temporary current spikes while providing immediate, failsafe clearing during true fault conditions to protect your downstream infrastructure.
- Engineered with a space-saving, standardized footprint measuring 6.4 inches high, 4.09 inches wide, and 3.4 inches deep, this compact unit seamlessly integrates into modern or retrofitted switchboards and control panels. The consistent H-frame dimensions across the PowerPact line allow electrical contractors to standardize equipment layouts and maximize interior panel real estate without complex modifications.
- This unit comes fully equipped with premium factory-installed line and load side mechanical lugs (AL150HD terminal kit) optimized for AWG 14 to AWG 3/0 aluminum or copper wiring. This integrated design eliminates the hassle and added expense of sourcing separate terminal components, ensuring a high-torque, gas-tight electrical connection that reduces resistance and prevents dangerous hot spots.
- Fully certified to rigorous international safety and performance baselines, this breaker is UL 489 Listed, CSA approved, CE marked, and NEMA compliant. These comprehensive certifications guarantee compliance with Canadian electrical codes and strict workplace safety regulations, allowing engineers and facility managers to spec it with absolute confidence.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Canada
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length16 mm
Complementary Attributes
- Line Rated Current
- 150-150 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Tightening Torque
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Ics] Rated Service Breaking Capacity
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2, 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 14 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.797734803554614
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.33552993851258
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2206027_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 3/0 aluminium/copper terminal
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Magnetic Tripping Current
- 1700-1700 A
- Mounting Support
- lug
- Number Of Poles
- 3P
- Product Name
- PowerPact H
- Protected Poles Description
- 3t
- Quantity Per Set
- 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL150HD
- Trip Unit Technology
- thermal-magnetic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 792.342
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 163 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-3
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Package Weight(Lbs)
- 1.882 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]0.4269036867860739, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02045618278007715, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]381 kg CO2 eq., 381.303206097364
Local Publishable Date2026-03-25
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Control Typetoggle
Energy Efficiency OptimizedFalse
Magnetic Hold Current900 A
Mounting Modeunit mount lug)
Network Frequency50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecircuit breaker
Quality LabelsCE
RangePowerPact
Software Versionv6.2.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint396 kg CO2 eq.
Utilisation Categorycategory A
Pep CodeENVPEP2206027EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %45
Width Nominal104 mm
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Operating Altitude
- < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206027_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint395.8838307089973
Environmental DisclosureENVPEP2206027EN
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
