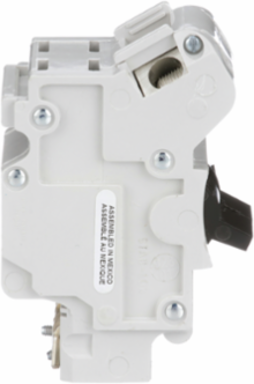

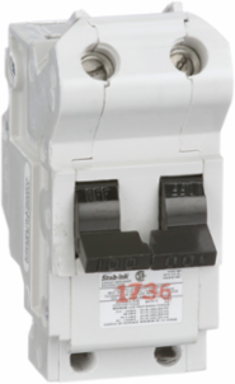

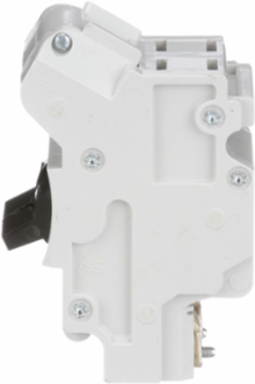

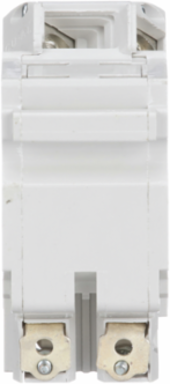

Federal Pioneer NB2P100 Stab-Lok Circuit Breaker, 100A, 2 Pole, 120/240VAC, 10kA, Bolt-On Mount
- MPN: NB2P100
- UPC: 047569384189
- PPN: SCH-NB2P100
CAD
$474.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 100A, 120/240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- This authentic Schneider Electric Federal Pioneer NB2P100 miniature circuit breaker is specifically engineered for original Federal Pioneer (FPE) Stab-Lok commercial and institutional enclosures. This precise physical alignment prevents panel arcing, ensures a code-compliant fit, and eliminates the safety hazards of using unapproved third-party replacements.
- Built to manage demanding infrastructure requirements, this 2-pole breaker delivers a robust 100 Amp capacity at 120/240VAC with a 10kA interrupting rating. It safeguards high-amperage sub-panels, large HVAC units, and industrial machinery by instantaneously isolating faults to protect your downstream equipment from catastrophic overcurrent damage.
- Engineered with an advanced thermal-magnetic trip mechanism, the breaker continuously monitors your circuitry for both slow thermal overloads and sudden magnetic short circuits. Its specialized arc-resistant molded case isolates internal thermal spikes, mitigating dangerous hot spots and protecting building personnel and critical infrastructure.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
Product Or Component Typeminiature circuit-breaker
Complementary
- Mounting Mode
- bolt-on
- Poles Description
- 2P
- [In] Rated Current
- 150 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Breaking Capacity10 kA
Electrical Connectionscrew connector
Awg GaugeAWG 1/0 copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
