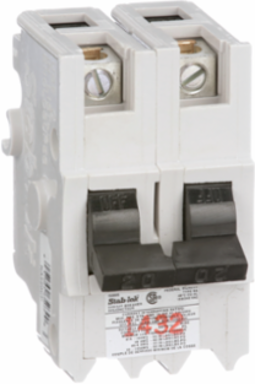

Federal Pioneer NA260 Stab-Lok Circuit Breaker, 60A, 2 Pole, 120/240V AC, 10kA, Plug-In Mount
- MPN: NA260
- UPC: 047569370694
- PPN: SCH-NA260
CAD
$158.63
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 60A, 120/240VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- The Schneider (Square D) NA260 is a 60-Amp, 2-Pole molded case circuit breaker from the trusted Magnum/Multi9 or QO/QOB family (depending on specific regional branding). It is designed to provide robust overcurrent and short-circuit protection for 240V AC branch circuits, making it a staple for Canadian residential and light commercial sub-panels.
- With its 2-pole design, the NA260 occupies two slots in your load center to provide 240V power. At 60 Amps, this breaker is typically used to protect high-draw Canadian household and commercial appliances, such as electric furnaces, large heat pumps, hot tubs, or 60A sub-panel feeders.
- Like most premium Schneider Square D breakers, this unit often features the Visi-TripTM indicator. When the breaker trips, a highly visible red window appears in the handle area, allowing homeowners and maintenance staff to instantly identify the faulted circuit among a row of dozens of breakers, even in a dark mechanical room.
- The NA260 is engineered with a high-speed switching mechanism that snaps the contacts open or closed regardless of how slowly the handle is moved. This "Quick-Make/Quick-Break" design minimizes internal arcing, significantly extending the life of the breaker and ensuring reliable performance in high-demand Canadian electrical environments.
- It is critical to verify your panel type: the QO version is a "Plug-On" design for standard residential load centers, while the QOB version is a "Bolt-On" design typically required for commercial NQ/NQOD panelboards. Both offer the same 60A protection but utilize different mounting physicalities to ensure a secure, vibration-proof connection.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 60 A
- Breaking Capacity
- 10 kA
Poles Description2P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 2 copper
Electrical Connectionscrew connector
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
