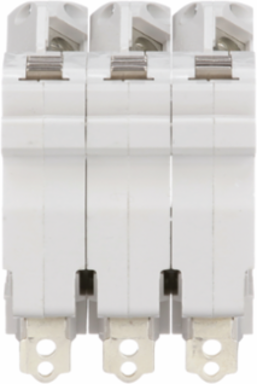

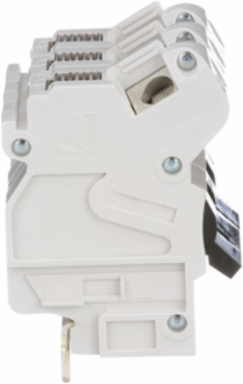

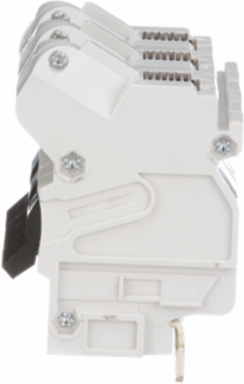

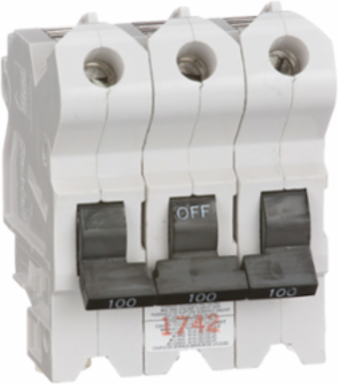

Federal Pioneer NB3P100 Stab-Lok Circuit Breaker 100A 3 Pole 240VAC 10kA Bolt-On Mount
- MPN: NB3P100
- UPC: 047569384592
- PPN: SCH-NB3P100
CAD
$962.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a three pole 100A, 240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- Part of the historic Stab-LokTM product family inherited through the Federal Pioneer (FPE) brand line, this miniature circuit breaker is specifically engineered for legacy Canadian panel installations. It provides property managers and industrial electricians with an authentic, code-compliant replacement component to maintain existing infrastructure without undergoing a premature and incredibly costly complete panel replacement.
- Delivering a substantial 100-amp continuous current rating across three physical poles (3P) at 120/240V AC, this thermal-magnetic breaker is optimized for multi-phase commercial and light industrial machinery. The slow-blow thermal element handles standard transient line surges while protecting structural branch wiring from long-term insulation damage, and its instantaneous magnetic armature cuts off severe line faults immediately.
- Unlike standard plug-on consumer breakers, this heavy-duty Type NB module features a specialized bolt-on mounting configuration. This mechanical installation structure ensures a rigid, high-integrity physical connection directly to the panel s distribution bus bars completely eliminating terminal jaw loose-fits, reducing localized arcing risks, and meeting strict commercial code regulations for continuous, high-load industrial environments.
- The line and load connections are fitted with high-performance, industrial-grade mechanical screw connectors engineered to accommodate a wide wire range from 14 AWG up to a heavy 1/0 AWG in both aluminum and copper conductors. This generous sizing gives field contractors optimal flexibility to route thick supply lines, providing a tight, permanent connection that prevents loose-wire terminal faults over decades of service.
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Breaking Capacity
- 10 kA
- Mounting Mode
- Bolt-on
- Awg Gauge
- AWG 14...AWG 1/0 aluminum/copper
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Reach Regulation
- Contains SVHC above threshold
Voltage120/240 V AC
Poles3P
Electrical ConnectionScrew connector
Product Or Component TypeMiniature circuit-breaker
Product CertificationsCSA
Eu Rohs DirectiveCompliant with Exemptions
Range Of ProductStab-lok
