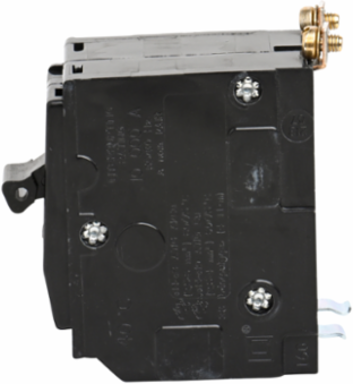

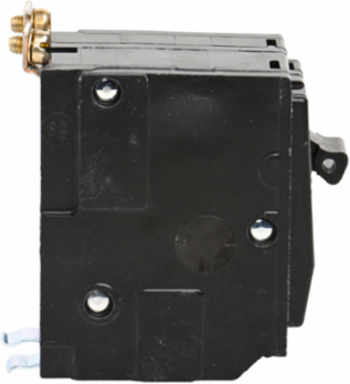

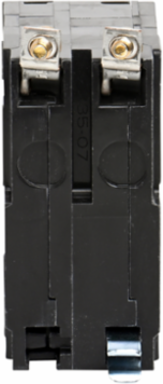

Schneider Electric NC0220 Stab-Lok Circuit Breaker, 20A, 2 Pole, 120/240V AC, 10kA, Plug-In Mount
- MPN: NC0220
- UPC: 785901388777
- PPN: SCH-NC0220
CAD
$61.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 20A, 120/240VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- The Schneider NC0220 is a genuine, CSA-certified Federal Pioneer (FPE) Stab-lok circuit breaker. Specifically designed for the Canadian market, this OEM breaker ensures a perfect fit and safe electrical connection in existing Federal Pioneer load centers, maintaining your manufacturer's warranty and providing peace of mind over non-certified "classified" alternatives.
- Rated at 20 Amps and 120/240V, this double-pole breaker is designed to protect 240V circuits or shared-neutral multi-wire branch circuits. It is the standard requirement for smaller 240V household loads, such as baseboard heaters, small well pumps, or specialized shop equipment that requires synchronized protection across both "hot" legs of the circuit.
- The NC0220 features an internal common trip mechanism. This ensures that if a fault occurs on either leg of the circuit, both poles trip simultaneously. This safety feature completely de-energizes the 240V equipment, preventing a "half-live" condition that could lead to electrical shock or machine damage.
- This breaker uses the classic Stab-lok plug-in design. It features two "stabs" on the back that snap directly onto the panel's bus bar. This high-pressure connection is engineered to provide a low-resistance electrical path, while the box-lug terminals on the front securely hold your copper or aluminum wiring.
- The NC0220 utilizes a thermal-magnetic trip system. The thermal element protects against slow, sustained overloads (drawing too much current over time), while the magnetic element provides instantaneous protection against dangerous short circuits. This dual-layer defense is critical for protecting your home's infrastructure from electrical fires.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 20 A
- Breaking Capacity
- 10 kA
Poles Description2P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 6 copper
Electrical Connectionscrew connector
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
