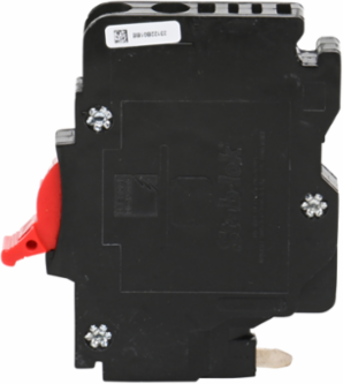

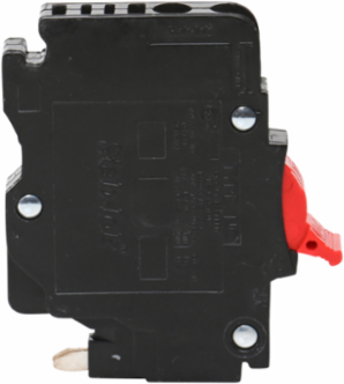

Schneider Electric NC020 Stab-Lok Circuit Breaker, 20A, 1 Pole, 120VAC, 10kA, Plug-In Mount
- MPN: NC020
- UPC: 785901388746
- PPN: SCH-NC020
CAD
$33.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a one pole 20A, 120VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- The Schneider NC020 is an authentic, CSA-certified Federal Pioneer (FPE) Stab-lok circuit breaker, engineered specifically for the Canadian residential market. As the OEM replacement for aging panels, it ensures perfect mechanical and electrical compatibility, eliminating the safety risks and fitment issues associated with non-certified aftermarket alternatives.
- Rated at 20 Amps and 120V, this single-pole breaker is typically used for higher-draw branch circuits. It is the standard protection for kitchen counter outlets, laundry room circuits, and dedicated outlets for power tools or small appliances that require more than the standard 15-Amp residential limit.
- This breaker utilizes a thermal-magnetic trip mechanism to provide dual-stage defense. The thermal element reacts to sustained overloads protecting your home s wiring from overheating while the magnetic element provides instantaneous protection against high-energy short circuits, significantly reducing the risk of electrical fires.

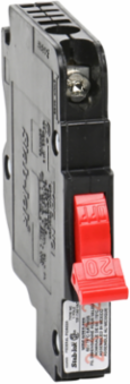

- Following the classic Stab-lok color-coding system, the NC020 features a distinctive red handle. This allow homeowners and electricians to identify the 20-Amp circuit rating at a glance without having to read small embossed text, which is especially critical during emergency troubleshooting.
- Designed for a plug-in connection, the NC020 snaps directly onto the panel's bus bar without the need for specialized tools. The secure "stab-on" design ensures a high-pressure electrical connection that resists loosening over time, while the robust screw terminal accommodates copper and aluminum conductors.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 20 A
- Breaking Capacity
- 10 kA
Poles Description1P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 7 copper
Electrical Connectionscrew connector
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
