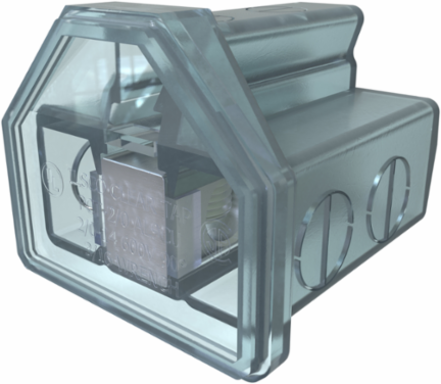

ILSCO PCT-2-2/0 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, 2 Ports, 2/0-14 AWG
- MPN: PCT-2-2/0
- UPC: 783669700404
- PPN: ILC-PCT-2-2/0
CAD
$64.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, 2 Ports, 2/0-14 AWG
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.919 in | 48.7426 mm |
|---|---|
| Weight | 0.288 lbs |
| Length | 2.429 in | 61.6966 mm |
|---|---|
| Width | 2.252 in | 57.2008 mm |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 3/16 |
|---|---|
| Height BX (IN) | 2 |
| Length (mm) | 61.6966 |
| Max Insulation OD (mm) | 15.621 |
| Width BX (IN) | 6.1875 |
| Drive Type Main | Internal Hex |
|---|---|
| Height (mm) | 48.7426 |
| Max Insulation OD (IN) | 0.615 |
| Weight BX (LB) | 1.878 |
| Width (mm) | 57.2008 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 2 |
| Number of Ports / Wireways | 2 |
| Contains DE-OX® | Yes |
|---|---|
| Number of Poles | 1 |
| Number of Usable Ports | 2 |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Insulation | Plastisol |
| Wire Binding Hardware Finish | Tin |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 2/0 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 2/0 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 195 Amps |
|---|
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366970040 |
| Carton Quantity Description | STD PACK QTY 6 |
|---|---|
| NEMA Code | S-588-4 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 120 |
| Wire Binding Screw Size | 7/16 |
|---|
Color
| Color | Clear |
|---|
Environment and Temperature
| Environmental Conditions | Cold temperature rated to -45°C |
|---|---|
| Temperature Rating | 90°C |
| Flammability Rating | Insulation rated per UL 94 |
|---|
