Ilsco

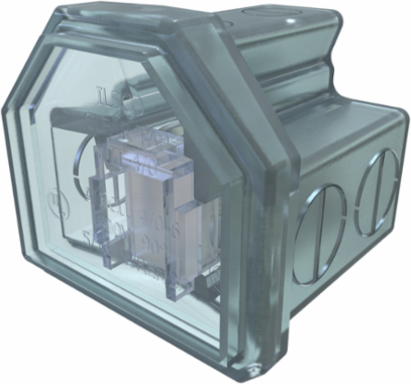

Ilsco PCT-2-4/0 Insulated Aluminum Multi-Tap Connector, 4/0-6 Conductor Range, 2 Ports, 260 Amps

Insulated Aluminum Multi-Tap Connector, 4/0-6 Conductor Range, 2 Ports, 260 Amps
  • MPN: PCT-2-4/0
  • UPC: 0783669700480
  • PPN: ILC-PCT-2-4/0

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$68.66/ EA

Specifications

Voltage

Voltage Rating
600 V

Dimensions

Drive Size Main
5/16
Height BX (IN)
3.75
Max Insulation OD (IN)
0.74
Weight BX (LB)
1.695
Width (mm)
62.5094
Drive Type MainInternal Hex
Height (mm)57.1754
Max Insulation OD (mm)18.796
Width BX (IN)6

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Number of Ports / Wireways
2
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2

Material and Finish

Conductor Material
Aluminum, Copper
Insulation
Plastisol
Wire Binding Hardware Finish
Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
4/0 Str - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)
4/0 Str - 6 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol

Additional Technical Specifications

Connector Amperage Rating CU (Derated where applicable)
260 Amps
Conductor TypeSolid, Stranded

General

Bag Quantity
1
Dual Rated
Yes
UPC Code
78366970048
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-4

Specifications

Height
2.251 in | 57.1754 mm
Weight
0.25 lbs
Length2.453 in
Width2.461 in | 62.5094 mm

Bolt and Screw Sizes

Number of Wire Binding Screws per Port
1
Wire Binding Torque
275
Wire Binding Screw Size9/16

Color

Color
Clear

Environment and Temperature

Environmental Conditions
Cold temperature rated to -45°C
Temperature Rating
90°C
Flammability RatingInsulation rated per UL 94
